UE5 ASRWebSocket plugin document

ASRWebSocket is a Unreal Engine 5.7 speech recognition (ASR) plugin that supports WebSocket and REST protocols for connecting to multiple cloud-based ASR providers, as well as local self-hosted ASR servers.

Sample files:

• BP: https://github.com/bingothreed/LocalASRService/blob/main/UEBPs/MicrophoneRecorder/ASRBP.uasset
• BP UI: https://github.com/bingothreed/LocalASRService/blob/main/UEBPs/MicrophoneRecorder/ASRUI.uasset
• Copiable BP: https://blueprintue.com/blueprint/3kauq-ze/

In the screenshot, the audio record part uses the Microphone Recorder plugin from Fab: https://www.fab.com/listings/67a6ae5a-69d1-46a8-b290-fa1815c43557

---

0. Quick BP overview

1. Add ASR component

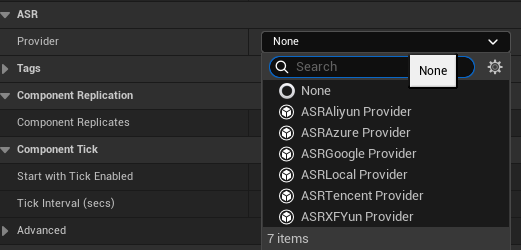

2. Set Provider in details panel

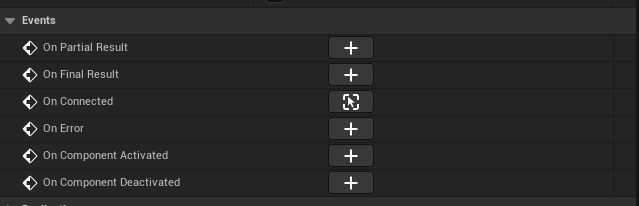

3. Bind events or create directly

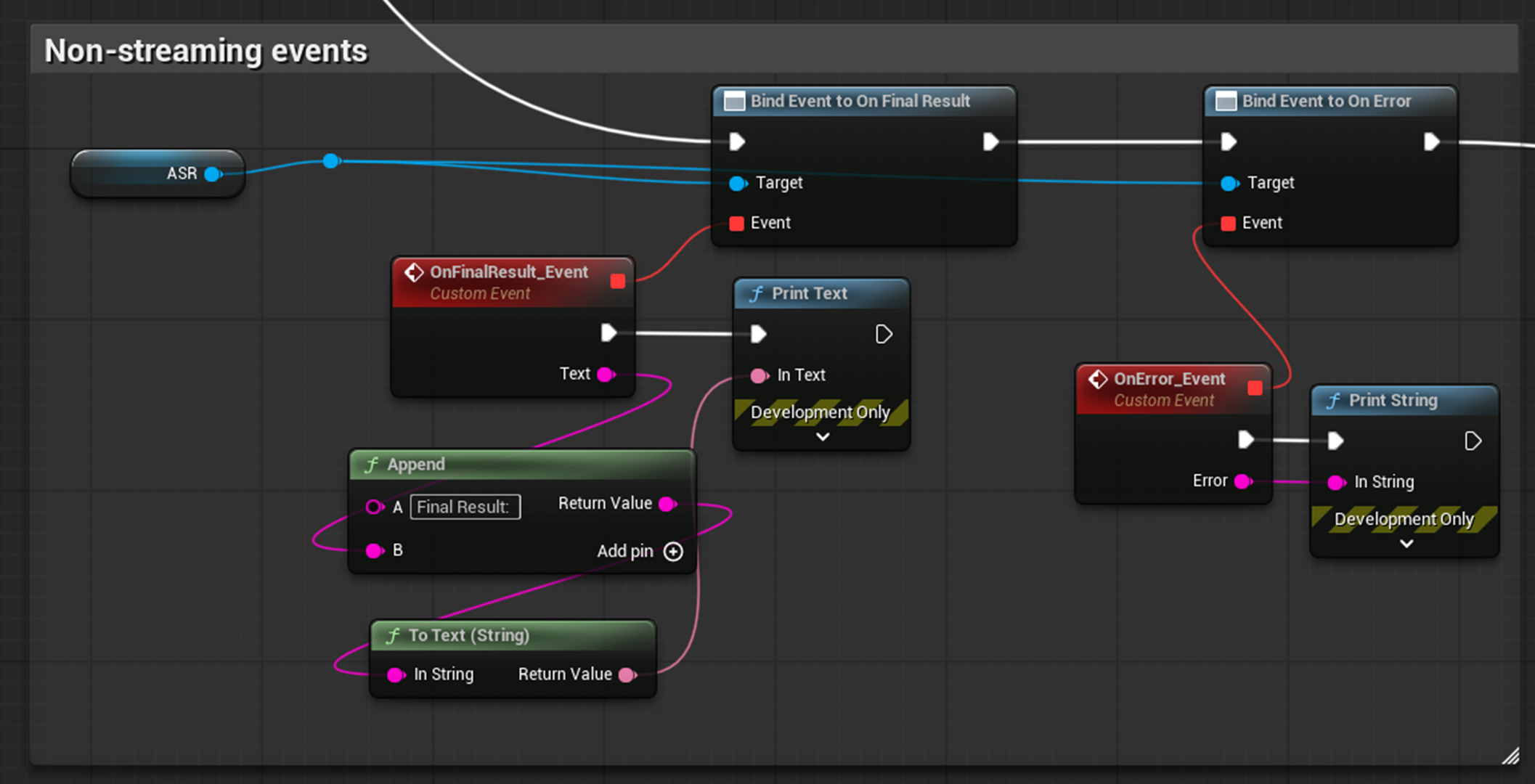

   • Non-streaming events for final result:

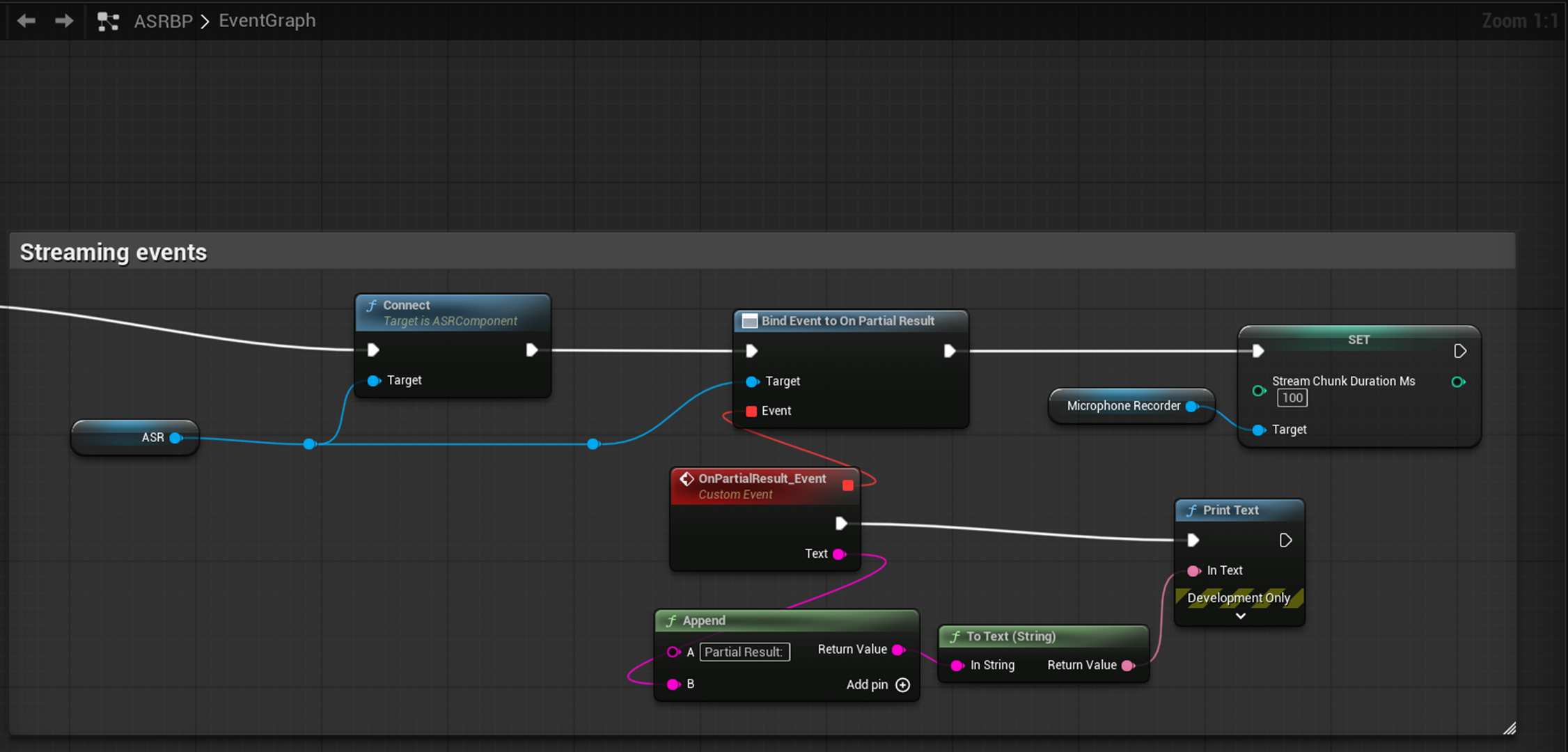

   • Streaming events for chunk recognition:

4. Recognition

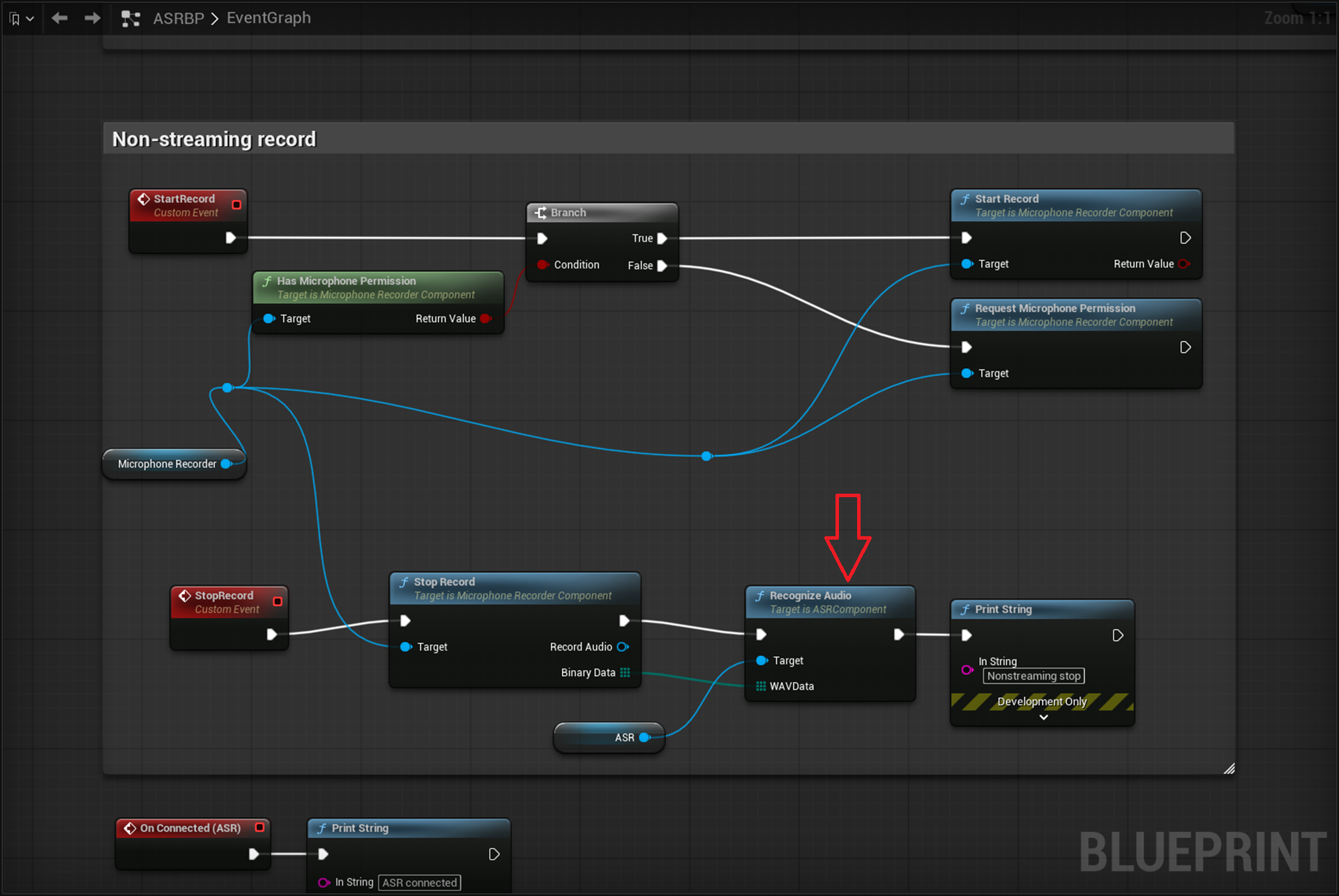

• Non-streaming: send the final binary audio data to provider via Recognize Audio BP node:

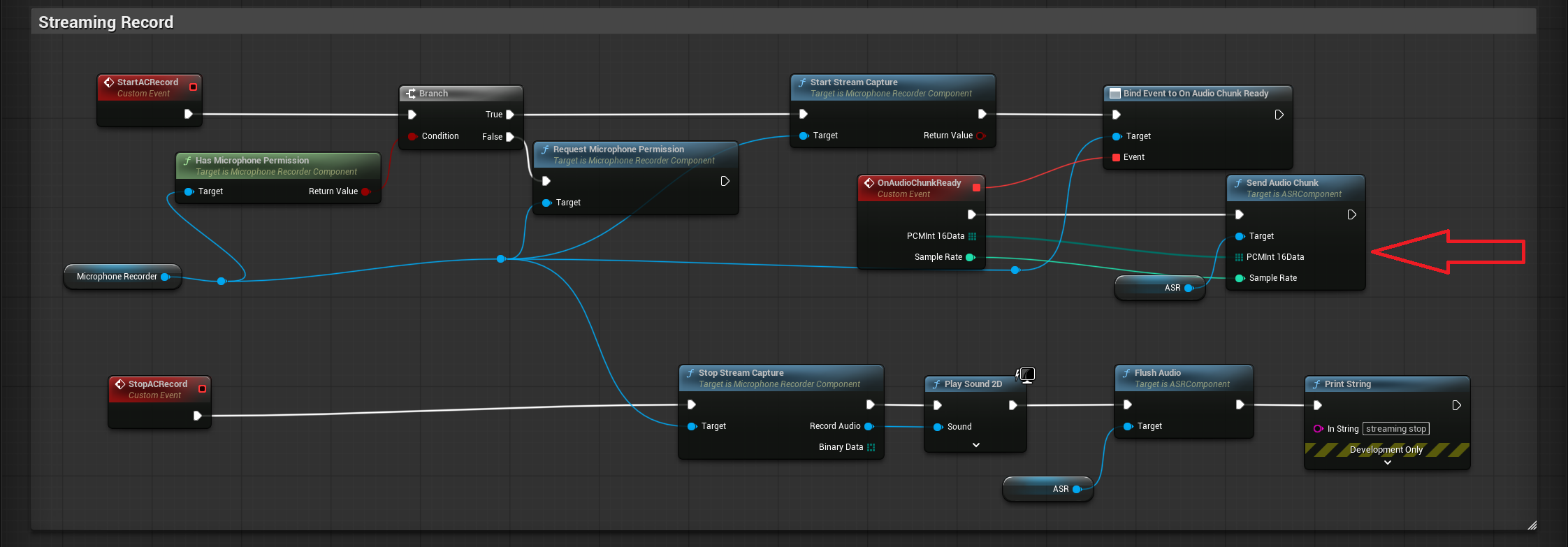

• Streaming: send audio chunk to provider one by one via Send Audio Chunk BP node:


1. Features

Feature	Description
Multi-Provider Support	Built-in support for Azure, Aliyun NLS, Google Cloud, Tencent Cloud, iFlytek (XFYun), and local servers
Streaming Recognition	Real-time audio streaming via WebSocket with partial and final result delivery
Batch Recognition	Send a complete WAV file for one-shot recognition
Blueprint-Friendly	All APIs exposed as BlueprintCallable / BlueprintPure / BlueprintAssignable via UASRComponent
Runtime Provider Switching	Dynamically swap ASR providers without recreating the component
Auto Resampling	Automatically resamples input PCM audio to 16 kHz mono Int16, compatible with MicrophoneRecorder’s OnAudioChunkReady signature
WAV File Handling	Automatic WAV header stripping and multi-channel-to-mono downmixing

Supported Providers

Provider	Streaming	Batch	Auth Method
Azure Speech	WebSocket	REST	API Key
Aliyun NLS	WebSocket	REST	Static Token / AccessKey Auto-Fetch
Google Cloud	Buffered (pseudo-streaming)	REST	API Key
Tencent Cloud	WebSocket	REST (Flash)	SecretId + SecretKey (HMAC-SHA1)
iFlytek XFYun	WebSocket (IAT)	Simulated streaming	AppID + APIKey + APISecret (HMAC-SHA256)
Local Server	Raw WebSocket	Raw WebSocket	None

---

2. Architecture

┌──────────────────────────────┐
│     UASRComponent             │
│  (ActorComponent, Blueprint)  │
│                               │
│  Blueprint Events:            │
│  - OnPartialResult(Text)      │
│  - OnFinalResult(Text)        │
│  - OnConnected()              │
│  - OnError(Error)             │
│                               │
│  Blueprint Functions:         │
│  - Connect / Disconnect       │
│  - SendAudioChunk / Flush     │
│  - RecognizeAudio             │
│  - SwitchProvider             │
│  - IsConnected                │
└──────────┬───────────────────┘
           │ Provider (Instanced)
           ▼
┌──────────────────────────────┐
│   UASRProviderBase (Abstract) │
│   - Connect()                │
│   - SendAudioChunk()         │
│   - FlushAudio()             │
│   - RecognizeAudio()         │
│   - Disconnect()             │
│   - IsConnected()            │
└──────────┬───────────────────┘
           │
    ┌──────┼──────┬────────┬──────────┬──────────┐
    ▼      ▼      ▼        ▼          ▼          ▼
  Azure  Aliyun Google Tencent   XFYun     Local

---

3. Provider Configuration Reference

3.1 Azure Speech (UASRAzureProvider)

Uses Azure Cognitive Services Speech-to-Text.

Config struct: FAzureASRConfig

Parameter	Type	Default	Description
APIKey	FString	(empty)	Azure Speech service API key
Region	FString	(empty)	Azure region identifier. Common values: "eastus" (global), "chinaeast2" (China)
Language	FString	"zh-CN"	BCP-47 language code. Common values: "zh-CN" (Mandarin), "en-US" (US English)
Mode	EAzureASRMode	Conversation	Recognition mode. Interactive (short utterances), Conversation (conversation), Dictation (dictation)

Portal: https://speech.microsoft.com/

---

3.2 Aliyun NLS (UASRAliyunProvider)

Uses Alibaba Cloud Intelligent Speech Interaction (NLS).

Config struct: FAliyunASRConfig

Parameter	Type	Default	Description
AppKey	FString	(empty)	Aliyun NLS project AppKey
Region	FString	"cn-shanghai"	NLS gateway region. Common values: "cn-shanghai", "cn-beijing"
AuthMode	EAliyunAuthMode	StaticToken	Authentication mode (see below)
Token	FString	(empty)	(Static Token mode) Pre-fetched NLS access token
AccessKeyId	FString	(empty)	(Auto Fetch mode) Aliyun account AccessKey ID
AccessKeySecret	FString	(empty)	(Auto Fetch mode) Aliyun account AccessKey Secret

Auth modes:

Mode	Description
StaticToken	Use a pre-fetched token. Manually fill in the Token field
AutoFetch	Use AccessKeyId + AccessKeySecret to automatically fetch tokens via HMAC-SHA1 signed requests. The plugin manages token refresh (refreshed 60 seconds before expiry)

Additional event — UASRAliyunProvider only:

UPROPERTY(BlueprintAssignable)
FOnAliyunTokenResult OnTokenFetched;
// Delegate signature: void(bool bSuccess, const FString& Info)

Fires when the auto-fetched token request completes (only in AutoFetch mode).

Portal: https://nls-portal.console.aliyun.com/applist

---

3.3 Google Cloud (UASRGoogleProvider)

Uses Google Cloud Speech-to-Text v1 REST API.

Note: Streaming mode is not true WebSocket streaming. Audio chunks are buffered locally and submitted as a single synchronous recognition request when FlushAudio() is called. Results are delivered via OnFinalResult after FlushAudio returns.

Config struct: FGoogleASRConfig

Parameter	Type	Default	Description
APIKey	FString	(empty)	Google Cloud API key
LanguageCode	FString	"zh-CN"	BCP-47 language code. Common values: "zh-CN", "en-US"
Model	FString	(empty)	Optional model override. Options: "latest_short", "latest_long", "command_and_search", "chirp", etc. Leave empty for default
bEnablePunctuation	bool	true	Enable automatic punctuation

Portal: https://console.cloud.google.com/apis/credentials

---

3.4 Tencent Cloud (UASRTencentProvider)

Uses Tencent Cloud ASR real-time (streaming) and Flash (batch) recognition.

Config struct: FTencentASRConfig

Parameter	Type	Default	Description
AppId	FString	(empty)	Tencent Cloud AppID (numeric string)
SecretId	FString	(empty)	Tencent Cloud API SecretId
SecretKey	FString	(empty)	Tencent Cloud API SecretKey
EngineModelType	FString	"16k_zh"	Engine model type. Common values: "16k_zh", "8k_zh", "16k_en"

Authentication uses HMAC-SHA1 signing, computed automatically by the plugin.

Streaming protocol:

• Connects to wss://asr.cloud.tencent.com/asr/v2/{AppId}
• Sends 6400-byte PCM chunks (200ms @ 16 kHz)
• slice_type=1 → OnPartialResult
• slice_type=2 → OnFinalResult

Batch protocol: POST to https://asr.cloud.tencent.com/asr/flash/v1/{AppId} (Flash API)

---

3.5 iFlytek XFYun (UASRXFYunProvider)

Uses iFlytek IAT (Interactive Audio Transcription) service.

Config struct: FXFYunASRConfig

Parameter	Type	Default	Description
AppID	FString	(empty)	iFlytek open platform application ID
APIKey	FString	(empty)	iFlytek API key
APISecret	FString	(empty)	iFlytek API secret
Language	FString	"zh_cn"	Language setting (currently only "zh_cn" is supported)

Authentication uses HMAC-SHA256 signing, connecting to wss://iat-api.xfyun.cn/v2/iat.

Protocol notes:

• First frame (status=0) contains common + business parameters
• Continue frames (status=1) carry audio data
• Last frame (status=2) signals end of audio
• Supports dynamic correction (pgs field), auto-concatenating segmented results

Portal: https://console.xfyun.cn/services/iat

---

3.6 Local Server (UASRLocalProvider)

Sample Local server with vosk and sherpa: https://github.com/bingothreed/LocalASRService/tree/main

Connects to a local self-hosted ASR server.

Config struct: FLocalASRConfig

Parameter	Type	Default	Description
ServerURL	FString	"ws://127.0.0.1:2700"	WebSocket URL of the local ASR server
TargetSampleRate	int32	16000	Sample rate the server expects (Hz)

Server-side protocol requirements:

Input:

• Binary frames: PCM Int16 mono audio
• JSON control frame: {"command":"eof"} — end of audio (maps to FlushAudio)
• JSON control frame: {"command":"reset"} — reset session (maps to Disconnect)
• Batch: raw WAV bytes (server auto-detects RIFF header)

Output (JSON):

{"partial": "intermediate recognition result"}
{"text": "final recognition result"}
{"error": "error description"}

---

4. Core Nodes (UASRComponent)

4.1 BlueprintCallable Functions

Connect

UFUNCTION(BlueprintCallable)
void Connect();

Connects to the ASR service. Automatically binds provider internal delegates to the component’s Blueprint events.

Typical flow: SwitchProvider → configure Provider parameters → Connect

---

Disconnect

UFUNCTION(BlueprintCallable)
void Disconnect();

Disconnects from the ASR service.

---

IsConnected

UFUNCTION(BlueprintPure)
bool IsConnected();

Returns whether the provider is currently connected.

---

SendAudioChunk

UFUNCTION(BlueprintCallable)
void SendAudioChunk(const TArray<uint8>& PCMInt16Data, int32 SampleRate);

Sends a chunk of mono PCM Int16 audio data.

Parameter	Type	Description
PCMInt16Data	TArray<uint8>	Raw mono PCM Int16 byte data
SampleRate	int32	Sample rate of the input data (automatically resampled to 16 kHz internally)

Can be directly bound to MicrophoneRecorder’s OnAudioChunkReady event.

---

FlushAudio

UFUNCTION(BlueprintCallable)
void FlushAudio();

Signals end-of-speech so the provider can return the final recognition result for the current utterance.

---

RecognizeAudio

UFUNCTION(BlueprintCallable)
void RecognizeAudio(const TArray<uint8>& WAVData);

Sends a complete WAV file for batch recognition.

Parameter	Type	Description
WAVData	TArray<uint8>	Raw bytes of a complete WAV file

Internally strips WAV headers, mixes multi-channel to mono, and resamples to 16 kHz.

---

SwitchProvider

UFUNCTION(BlueprintCallable)
void SwitchProvider(TSubclassOf<UASRProviderBase> ProviderClass);

Disconnects the current provider and instantiates a new one.

Parameter	Type	Description
ProviderClass	TSubclassOf<UASRProviderBase>	Class reference for the target provider. Options: UASRAzureProvider, UASRAliyunProvider, UASRGoogleProvider, UASRTencentProvider, UASRXFYunProvider, UASRLocalProvider

After calling, cast the Provider property to the concrete type to configure its parameters, then call Connect().

---

4.2 Blueprint Events

OnPartialResult

UPROPERTY(BlueprintAssignable)
FOnASRPartialResult OnPartialResult;
// Delegate signature: void(const FString& Text)

Fires when an intermediate (non-final) recognition result arrives. The text may update as more audio data is received.

---

OnFinalResult

UPROPERTY(BlueprintAssignable)
FOnASRFinalResult OnFinalResult;
// Delegate signature: void(const FString& Text)

Fires when a final recognition result arrives. Typically triggered after FlushAudio() or RecognizeAudio().

---

OnConnected

UPROPERTY(BlueprintAssignable)
FOnASRConnected OnConnected;
// Delegate signature: void()

Fires when the provider successfully connects to the ASR service.

---

OnError

UPROPERTY(BlueprintAssignable)
FOnASRError OnError;
// Delegate signature: void(const FString& Error)

Fires when an error occurs. Contains the error description string.

---

4.3 Blueprint Property

Provider

UPROPERTY(EditAnywhere, Instanced, BlueprintReadOnly)
UASRProviderBase* Provider;

The currently active ASR provider instance. Can be selected and configured directly in the Details panel.

---

5. Usage Examples (Blueprint)

5.1 Streaming Recognition

1. Add UASRComponent to your Actor
2. Select a Provider type (e.g., UASRAzureProvider) in the Details panel
3. Fill in the Provider's Config parameters (APIKey, Region, etc.)
4. Bind events OnPartialResult / OnFinalResult / OnConnected / OnError in Blueprint
5. Call Connect() to establish connection
6. Loop calling SendAudioChunk(PCMData, SampleRate) to stream audio
7. Call FlushAudio() to signal end of speech
8. Call Disconnect() after receiving results

5.2 Batch Recognition

1. Add UASRComponent and configure Provider parameters (same as above)
2. Bind OnFinalResult / OnError events
3. Load WAV file byte data
4. Call RecognizeAudio(WAVData)
5. Results are returned via OnFinalResult event

5.3 Runtime Provider Switching

1. Call SwitchProvider(UASRAzureProvider::StaticClass())
2. Cast Provider property to the concrete type
3. Set the new provider's Config parameters
4. Call Connect()

---

6. Supported Platforms

Platform	Status
Win64	Fully supported
Linux / LinuxArm64	Fully supported
Mac	Fully supported
iOS	Fully supported
Android	Fully supported

---

7. Module Dependencies

• Core — Core engine types
• CoreUObject — UObject system
• Engine — ActorComponent
• HTTP — REST requests (batch recognition, Aliyun token fetching)
• WebSockets — WebSocket streaming recognition
• Json — JSON parsing (all protocols)

---

8. Engine Version

Minimum requirement: Unreal Engine 5.7

---

9. Contact

Author: BingoUE

Provider portals:

• Azure: https://speech.microsoft.com/
• Aliyun: https://nls-portal.console.aliyun.com/applist
• Google Cloud: https://console.cloud.google.com/apis/credentials
• Tencent Cloud: https://console.cloud.tencent.com/asr
• iFlytek: https://console.xfyun.cn/services/iat
